1、创建工程
- 添加依赖
可以选择手动添加依赖如下：
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
2、配置文件
spring.application.name=demo-rabbitmq-0706
server.port=9000
## Rabbit MQ
spring.rabbitmq.host=127.0.0.1
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest
# 确认消息发送到交换机上
spring.rabbitmq.publisher-confirm-type=correlated
spring.rabbitmq.virtual-host=/
# 确认消息已发送到队列
spring.rabbitmq.publisher-returns=true
3、简单模式（sample）
1）、配置类
package com.shenmazong.demorabbitmq0706.config;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class RabbitmqConfig {
@Bean
public Queue helloQueue() {
return new Queue("hello");
}
}
2）、消费者（接收端）
package com.shenmazong.demorabbitmq0706.listenner;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "hello")
public class HelloReceiver {
@RabbitHandler
public void onMessage(String message) {
System.out.println(message);
}
}
3）、生产者（发送端）
package com.shenmazong.demorabbitmq0706.controller;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class SampleController {
@Autowired
AmqpTemplate amqpTemplate;
@GetMapping(value = "/sendMessage")
public Object sendMessage() {
amqpTemplate.convertAndSend("hello", "hello,world");
return "ok";
}
}
4、工作模式（work）
1）、配置类
@Bean
public Queue workQueue() {
return new Queue("work");
}
2）两个消费者
- 第一个消费者
package com.shenmazong.demorabbitmq0706.listenner;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "work")
public class WorkReceiver1 {
@RabbitHandler
public void onMessage(String message) {
System.out.println("work1:"+message);
}
}
- 第二个消费者
package com.shenmazong.demorabbitmq0706.listenner;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "work")
public class WorkReceiver2 {
@RabbitHandler
public void onMessage(String message) {
System.out.println("work2:"+message);
}
}
3）、一个生产者
package com.shenmazong.demorabbitmq0706.controller;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class SampleController {
private Integer idx = 0;
@Autowired
AmqpTemplate amqpTemplate;
@GetMapping(value = "/workMessage")
public Object workMessage() {
amqpTemplate.convertAndSend("work", idx++ + ",work message");
return idx;
}
}

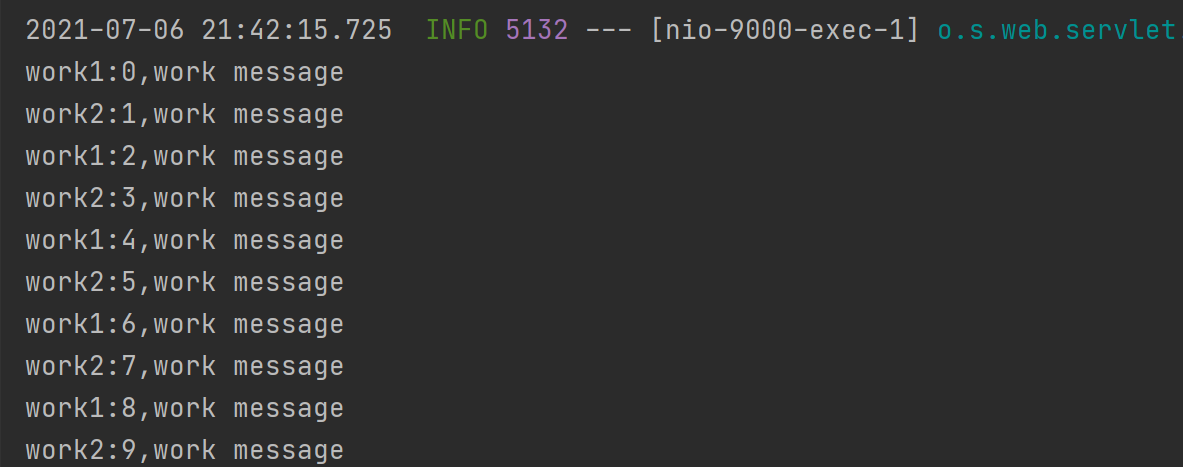

4）、运行效果
5、订阅模式（fanout）
1）、配置类
package com.shenmazong.demorabbitmq0706.config;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class FanoutMqConfig {
@Bean
public Queue AMessage() {
return new Queue("fanout.A");
}
@Bean
public Queue BMessage() {
return new Queue("fanout.B");
}
@Bean
public Queue CMessage() {
return new Queue("fanout.C");
}
@Bean
FanoutExchange fanoutExchange() {
return new FanoutExchange("fanoutExchange");
}
@Bean
Binding bindingExchangeA(Queue AMessage, FanoutExchange fanoutExchange) {
return BindingBuilder.bind(AMessage).to(fanoutExchange);
}
@Bean
Binding bindingExchangeB(Queue BMessage, FanoutExchange fanoutExchange) {
return BindingBuilder.bind(BMessage).to(fanoutExchange);
}
@Bean
Binding bindingExchangeC(Queue CMessage, FanoutExchange fanoutExchange) {
return BindingBuilder.bind(CMessage).to(fanoutExchange);
}
}
2）、消费者
- 消费者1
package com.shenmazong.demorabbitmq0706.listenner;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "fanout.A")
@Slf4j
public class FanoutReceiver1 {
@RabbitHandler
public void onMessage(String message) {
log.info("FanoutReceiver1:"+message);
}
}
- 消费者2
package com.shenmazong.demorabbitmq0706.listenner;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "fanout.B")
@Slf4j
public class FanoutReceiver2 {
@RabbitHandler
public void onMessage(String message) {
log.info("FanoutReceiver2:"+message);
}
}
- 消费者3
package com.shenmazong.demorabbitmq0706.listenner;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = "fanout.C")
@Slf4j
public class FanoutReceiver3 {
@RabbitHandler
public void onMessage(String message) {
log.info("FanoutReceiver3:"+message);
}
}
3）、生产者
@GetMapping(value = "/fanoutMessage")
public Object fanoutMessage() {
amqpTemplate.convertAndSend("fanoutExchange", "",idx++ + ",fanout message");
return idx;
}
4）、运行效果
参考网址：
